Description

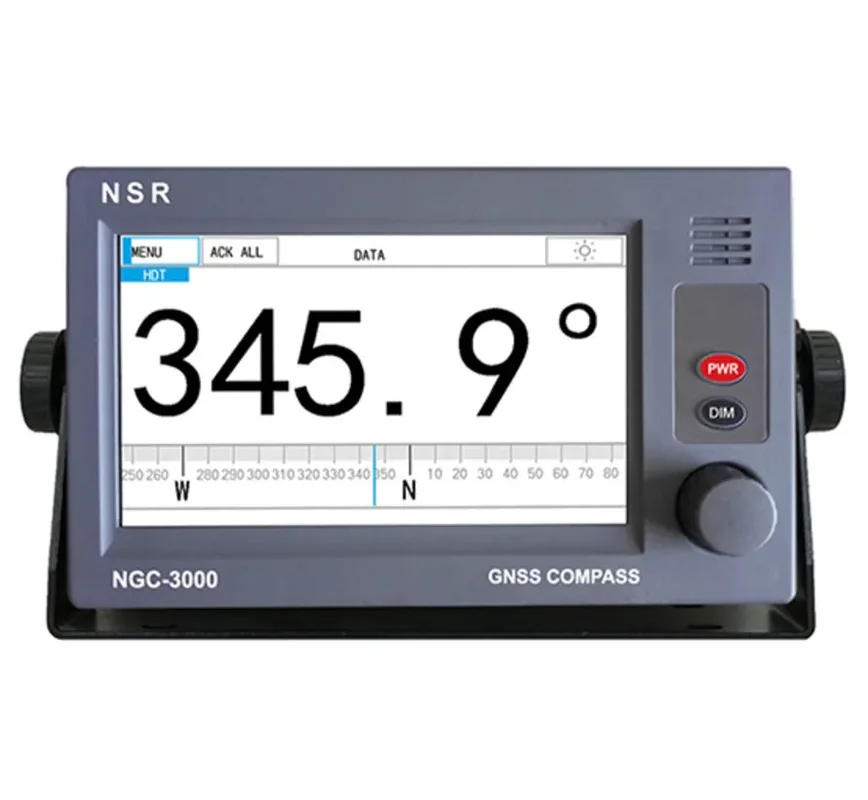

NSR NGC-3000 GNSS Compass met een groot LCD-scherm van 7 inch in kleur, bediening via touch.
-
Zeer nauwkeurige koers van 0,4° RMS.
-
Volledige GNSS met GPS, BDS, GLONASS, GALILEO.
-
Zowel THD (transmitting heading device) als GNSS.
-
Zeer nauwkeurige SOG, COG, ROT en positie.
-
Meerdere uitgangen van RS422 & LAN.
-
Gegevensinterface naar BAM-systeem/INS.
-
Maximaal vijf weergavemodi beschikbaar.
-
Voldoet aan IMO MSC.116(73) voor THD.
-
Onderhoudsvrij ontwerp.
CCS type approval.
RS type approval.
Specificaties NSR NGC-3000 GNSS Compass:
| GENERAL | |
| Heading Accuracy: | 0.4° RMS |
| Heading Resolution: | 0.1° |
| Tracking rate of turn: | 45°/sec |
| Tracking acceleration: | 1G |
| Pitch/roll angle: | ±60° |
| Receiving frequencies: | GPS L1/L2, BDS B1/B2, GLONASS L1/L2, Galileo E1/E5b |
| Position Accuracy: | 1.5m |
| Speed Accuracy: |
0.03m/s |
| Position Fixing Time: | <30s |
| Data Output Rate: | max 20Hz |
| DISPLAY SECTION | |
| Display System: | 7 inch, color LCD, touch screen operation, 154(W)×87(H) mm |
| Resolution: | 800 x 480 dots |
| Display Mode: | DATA (Heading, NAV data), PLOTTER, TURN, COMPASS, SATELLITE |
| INTERFACE | |
| Output Data: |
2 IEC-61162-1 Ed4, Ed5, NMEA 1.5, 2.0, 2.3 |
| Transmission Speed: | 4800/9600/19200/38400 bps (selectable) |
| BAM/INS In/Out: | ACN, ALC, ALF, HBT |
|
Data Sentences: |
HDT, THS, ROT, RMC, GGA, VTG, ZDA, DTM, GLL, GST, ALC, ALF, HBT, RTE, WPL (selectable) |
| ENVIRONMENT CONDITION | |
| Temperature range: | -20℃~+55℃ operational -30℃~+70℃ storage (Antenna) |
| IP Grade: |
Antenna Unit: IP66 |
| Compass safe distance: | 1.15m (standard) |
| Power Supply | DC24V 500mA (range DC12-36V) |
| Size | 174 (W) × 81 (H) × 160 (D) mm (Processor unit) 264 (W) × 145 (H) × 83 (D) mm (Display unit) 810 (W) × 107 (H) × 160 (D) mm (Antenna unit) |
Datasheet NSR NGC-3000 GNSS Compass.
