NSR NVR-9000 VDR

Description

NVR-9000 VDR (Voyage Data Recorder) is designed to comply with the latest IMO rules of MSC.494 (104), IMO MSC.302 (87), IEC 61996-1, IEC 62923-1, IEC 62923-2.

– NSR’s own FFC and FPC adopted.

– Real monitoring software available for easy check.

– Flexible configuration for either VDR or SVDR.

– Linux O/S used in firmware of VDR system.

– Large size color LCD with touch screen operation.

– Data interface to BAM System.

– Store data for min 48 hours both in Float-free Capsule (FFC) and Fixed Protective Capsule (FPC).
– Store data for min 30days/720 hours in Data Acquisition Unit.

– Record image of two radars and two ECDIS.

– Three separate channels for audio input:

   One for up to 4 microphones

   One for up to 4 microphones

   One for 2 VHF audio

– As standard configuration, below ports provided:

   Serial port x 24 ch (8ch at DAU and 16 ch at DEU)

   Digital port x 64 ch (DEU)

   Analog port x 8 ch (DEU)

– PC software and Phone APP are available for playback and realtime monitoring.

– CCS type approval.

– DNV type approval.

– RS type approval.

– VR type approval.

Inhoud pakket NSR NVR-9000 VDR (Voyage Data Recorder)

• 1 * NVR9001 Data Acquisition Unit (DAU）W/ LRU (512G)
• 1 * NVR9002 Data Extension Unit (DEU)
• 1 * NVR9003 Remote Alarm Unit (RAU)
• 4 * NVR9005 Indoor Microphone Unit（IMU）
• 2 * NVR9006 Outdoor Microphone Unit（OMU）
• 1 * NVR9004-2 Video Interface Unit（VIU）(2 CHANNELS)

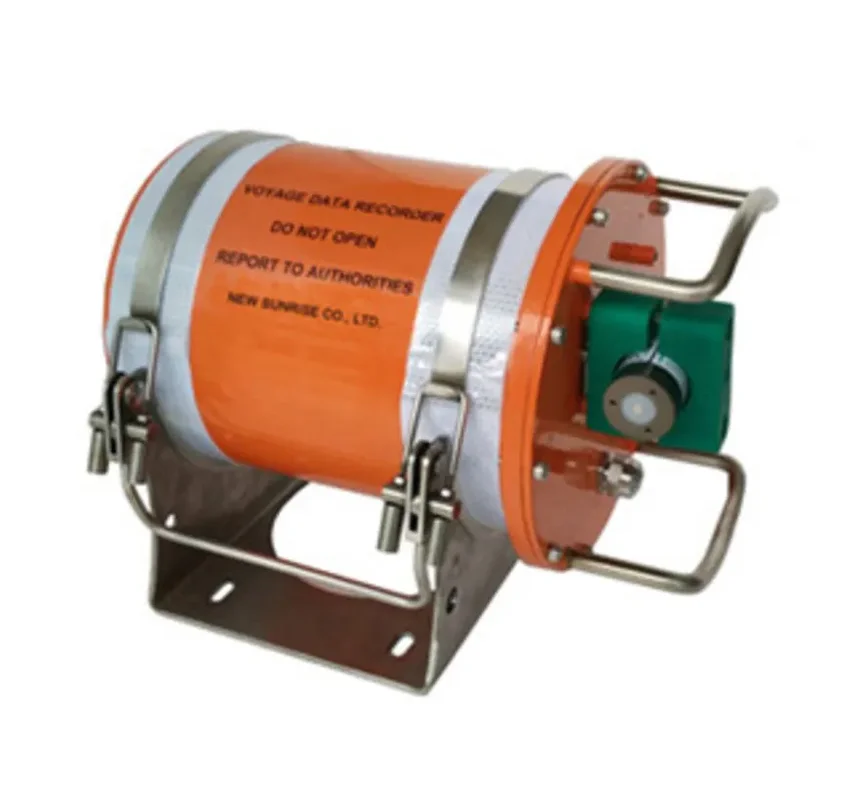

• 1 * NFP-2000C Fixed Protective Capsule（FPC）w/ beacon
• 1 * NEB-2000C-VDR Float-Free Capsule（FFC）
• 2 * NEB205 Junction Box
• 2 * Power/LAN cable 30m
• 1 * Accessories

Datasheet NSR NVR-9000 VDR (Voyage Data Recorder).
